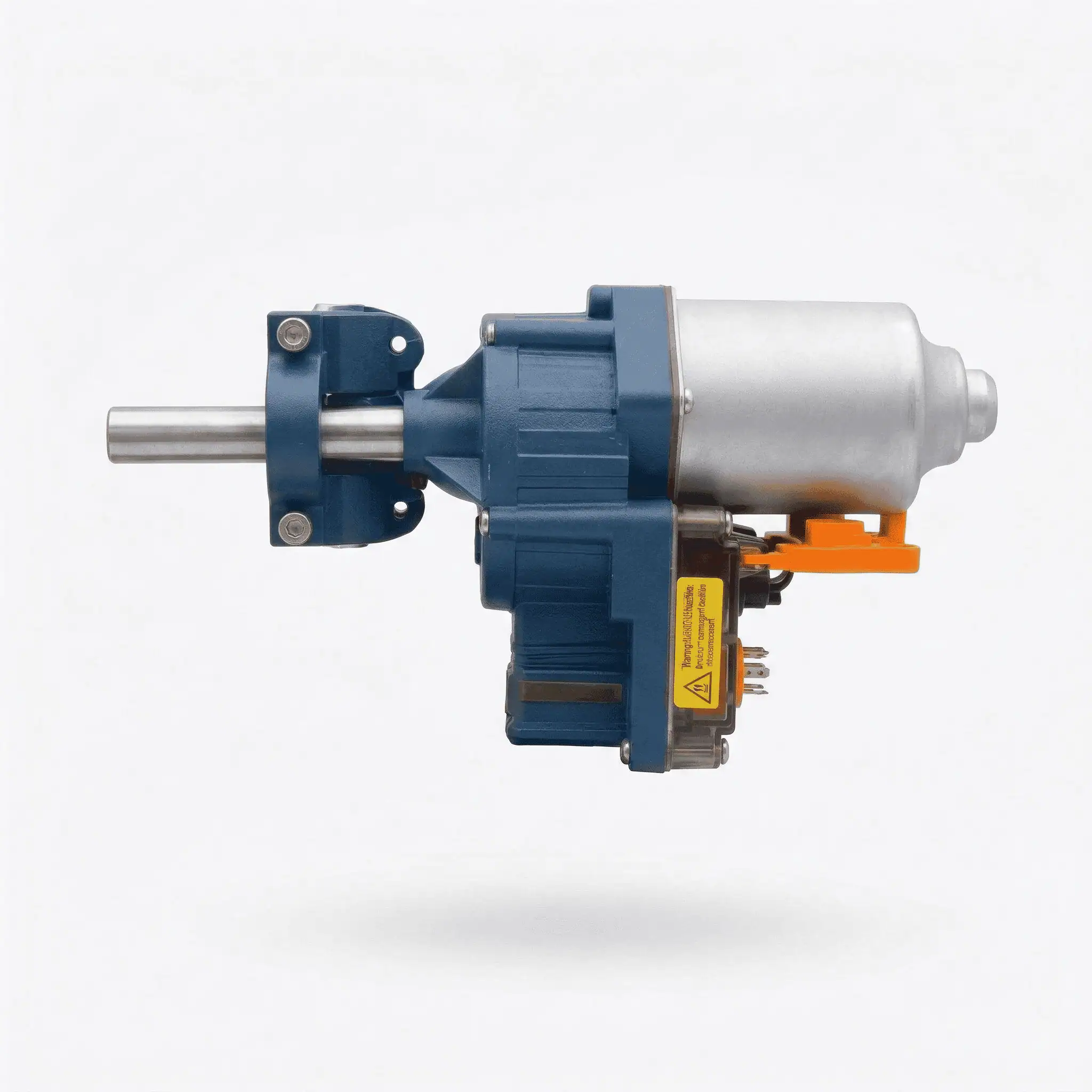

Roll Smarter. Ventilate With Precision. The Electrical Poly Roller System is the go-to solution for automating the opening and closing of poly film on greenhouse sidewalls, endwalls, and roof vents. A motorised roller tube is mounted along the base or peak of the structure, allowing the poly film to be wound up or lowered at the push of a button — or via an automated environmental controller.
The Electrical Poly Roller System is the go-to solution for automating the opening and closing of poly film on greenhouse sidewalls, endwalls, and roof vents. A motorised roller tube is mounted along the base or peak of the structure, allowing the poly film to be wound up or lowered at the push of a button — or via an automated environmental controller.
Replacing manual roll-up systems, electrical poly rollers save labour, reduce film stress, and allow precise ventilation control to maintain optimal growing conditions regardless of crop stage or weather conditions.
Simple. Reliable. Automated.
Roller Mounted to Structure A motorised roller tube is fixed horizontally to the greenhouse frame at the base of the sidewall or desired vent position, with the poly film attached and wound around it.
Motor Drives the Tube The electric motor engages to rotate the tube, smoothly winding the poly film upward to open ventilation or unwinding it downward to close and seal the wall.
Film Travels Cleanly Guide rails or strapping keep the film tracking straight and evenly across the full bay width, preventing bunching, tearing, or misalignment during operation.
Ventilation Controlled The roller can be stopped at any position, giving growers precise control over airflow and temperature — manually via switch or automatically via climate controller.
Technical Specifications
System Data
| Parameter | Specification |
|---|---|
| System Type | Motorised poly film roller, sidewall / endwall / roof vent |
| Motor Power | Typically 60W – 180W (depending on roller length and load) |
| Power Supply | 240V AC, single phase |
| Drive Speed | Approximately 5 – 12 RPM (roller tube) |
| Roller Tube Diameter | 50mm – 75mm (2″ – 3″) galvanised or aluminium tube |
| Max Roller Length | Up to 60m per motor unit (dependent on film weight) |
| Compatible Film Thickness | 150 micron (600 gauge) to 200 micron (800 gauge) |
| Compatible Film Types | Standard PE, thermal IR, anti-drip, diffused |
| Load Capacity | Up to 40kg film load per motor unit |
| Control Options | Manual wall switch, reversing switch, climate controller compatible |
| IP Rating | IP44 minimum (suitable for greenhouse environments) |
| Operating Temperature | Suitable for −20°C to +50°C ambient |
| Fixing System | Aluminium extrusion channel, wiggle wire, and mounting brackets |
| Structure Compatibility | Galvanised steel, aluminium, timber-framed greenhouses |
